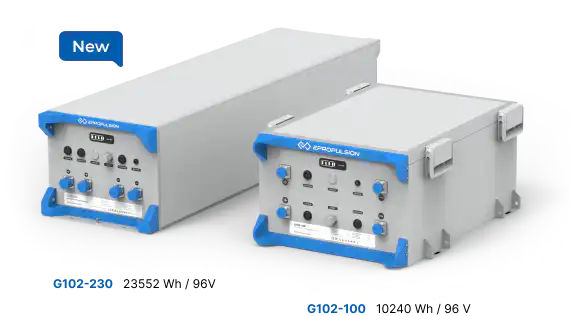

The G-Series Battery range are high-performance and durable lithium ironphosphate batteries, designed and tested for electric boating. They are waterproof to IP67 are certified across the globe including CE, UKCA and FCC compliant.
The G-102-100 and G102-230 are fully compatible with a range of ePropulsion engines including the X-Series outboard and eSSA Pod Drives.
The built-in intelligent battery management system (BMS) is applied to provide maximum safety all users.
The G102-230 (3,500 cycles at 80% DOD) and G102-100 (3,000 cycles at 80% DOD) both last longer than lead-acid batteries.**
Power the 96V 10kW to 40kW ePropulsion motors including theย X Series Outboard,ย I-Series Inboardย andย Pod Drive eSSA.*
The slim battery design optimizes under-boat or seat storage, ideal for space-saving on RIBs and pontoon boats.
The G-Series batteries have 3 times higher energy density and 70% less weight than lead-acid batteries.*

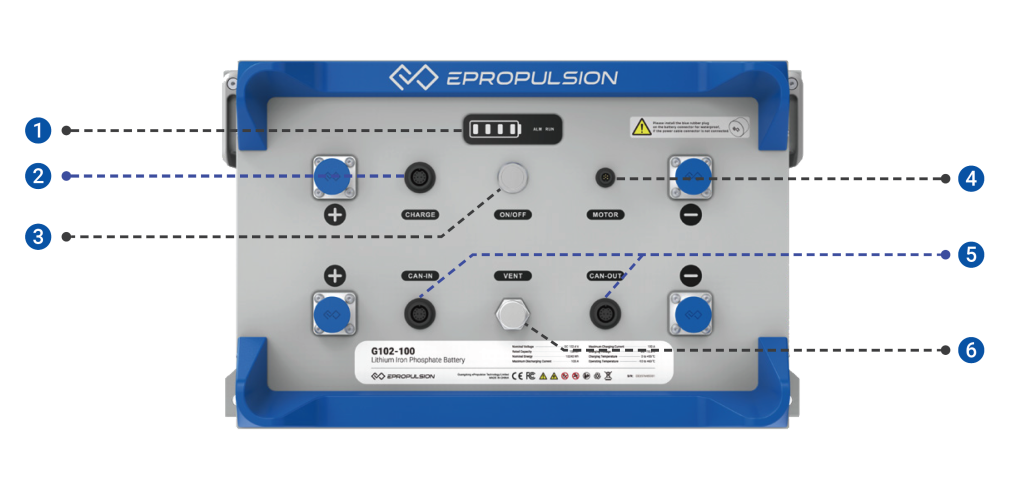

Connectors can be installed with only ONE hand, and the battery saves wiring harness connection compared to series-parallel connection of battery.
| ย | G102-100 | G102-230 |
| Chemistry | Lithium Iron Phosphate (LiFePO4) | Lithium Iron Phosphate (LiFePO4) |
| Rated Voltage | 102.4 V | 102.4 V |
| Capacity | 10240 Wh / 100 Ah | 23552 Wh / 230 Ah |
| Battery Life | 3,000 cycles at 80% DOD | 3,500 cycles at 80% DOD |
| Weight | 100 kg (220.5 lbs) | 180 kg (396.8 lbs) |
| Dimensions | 680 x 500 x 300 mm | 1287 x 366 x 295 mm |
| Cut-off Voltage | 83.2 V | 83.2 V |
| Final Charging Voltage | 115.2 V | 115.2 V |
| Max Continuous Discharging Current | 100 A | 230 A |
| Approvals | CE, UKCA, FCC | CE, UKCA, FCC |
| Warranty | 2 years | 2 years |
* Please refer to the full specification datasheet for further information.
