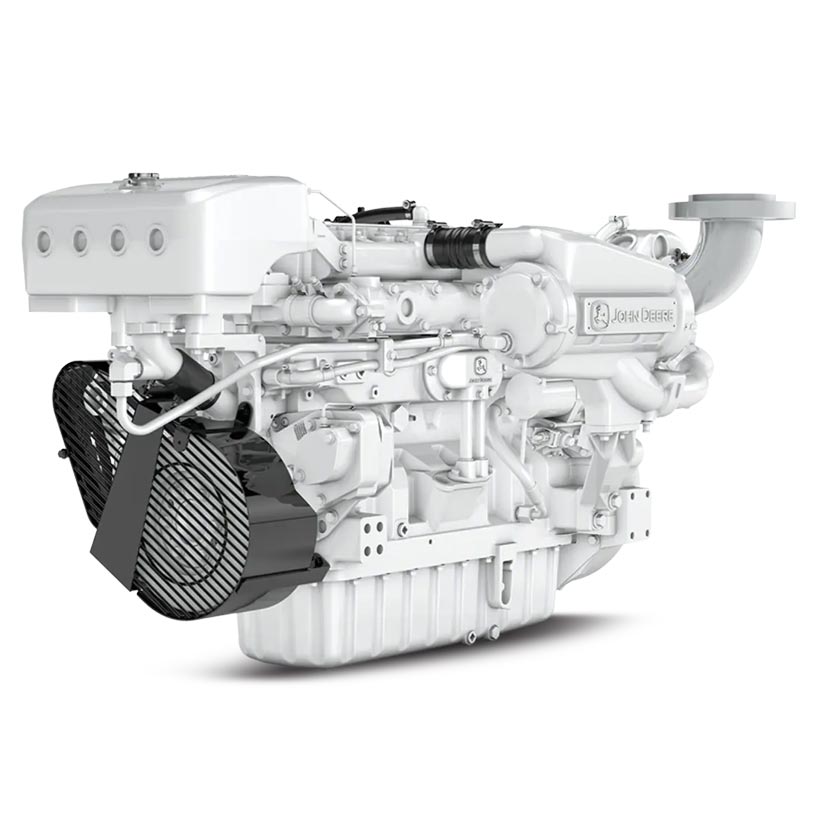

John Deere
6090AFM85
Brand_JohnDeere

Engine Specifications

Application

Sailing Engine, Powerboat Engine, Commercial Engine

Power Output (HP)

425

Power Output (kW)

316.9

Rated Speed

2100 RPM (M1)

Displacement

9.0L

Cylinders

6

Bore x Stroke

118mm x 136mm

Aspiration

Turbocharged

Dry Weight

1055kg

Dimensions

1717mm x 984mm x 1027mm

Controls

Certifications

EPA Commercial Marine Tier 3, IMO MARPOL Annex VI Tier II
Download Specifications

Powerful, reliable, John Deere

Experience the powerful reliability of the John Deere 9.0L PowerTech™ engine range. The 6090AFM85 is available in 213kW-317kW configurations (285-425hp). John Deere engines build power faster and cruise at a higher speed with a lower RPM. Boost your vessel’s performance in swells, tides, or heavy currents with reliable power that’s ready when you are.





Features:

  • High torque and low rated RPM for excellent control and manoeuvring
  • Excellent airflow through 4-valve cylinder head delivers greater low-speed torque and better transient response time
  • The high pressure common rail (HPCR) fuel system provides high performance, excellent fuel economy and low emissions
  • Closed cooling system in keel-cooled engine option eliminates the need for a sea strainer, seawater pump, or anodes. Heat exchanger option offers a lighter, more compact, and simpler engine installation
  • Advanced ECU provides fault code diagnostics and customizable engine protections to ensure reliability and uptime
  • Either-side oil fill/dipstick combinations and remote oil and fuel filter options are available for easier service access

Nothing runs like a Deere™

John Deere PowerTech™ engines are as powerful and dependable in the water as they are on land. Our marine engines share the same reputation for performance and reliability that their agricultural and industrial counterparts have enjoyed for decades. They are built for long life, reliable performance, fuel efficiency, quiet operation, ease of access to major parts and simplified integration. Don’t take our word for it, find out why John Deere is the powerful and reliable choice.

Return to Marine Engines

* All information shown is to be used as general information only. Images shown are for illustration purposes only and may not represent the final product. All dimensions, power outputs and technical details are approximate and may vary from time to time depending on a range of factors. Any data shown is subject to change without notice. Some items or accessories may not be available in all areas/regions.
