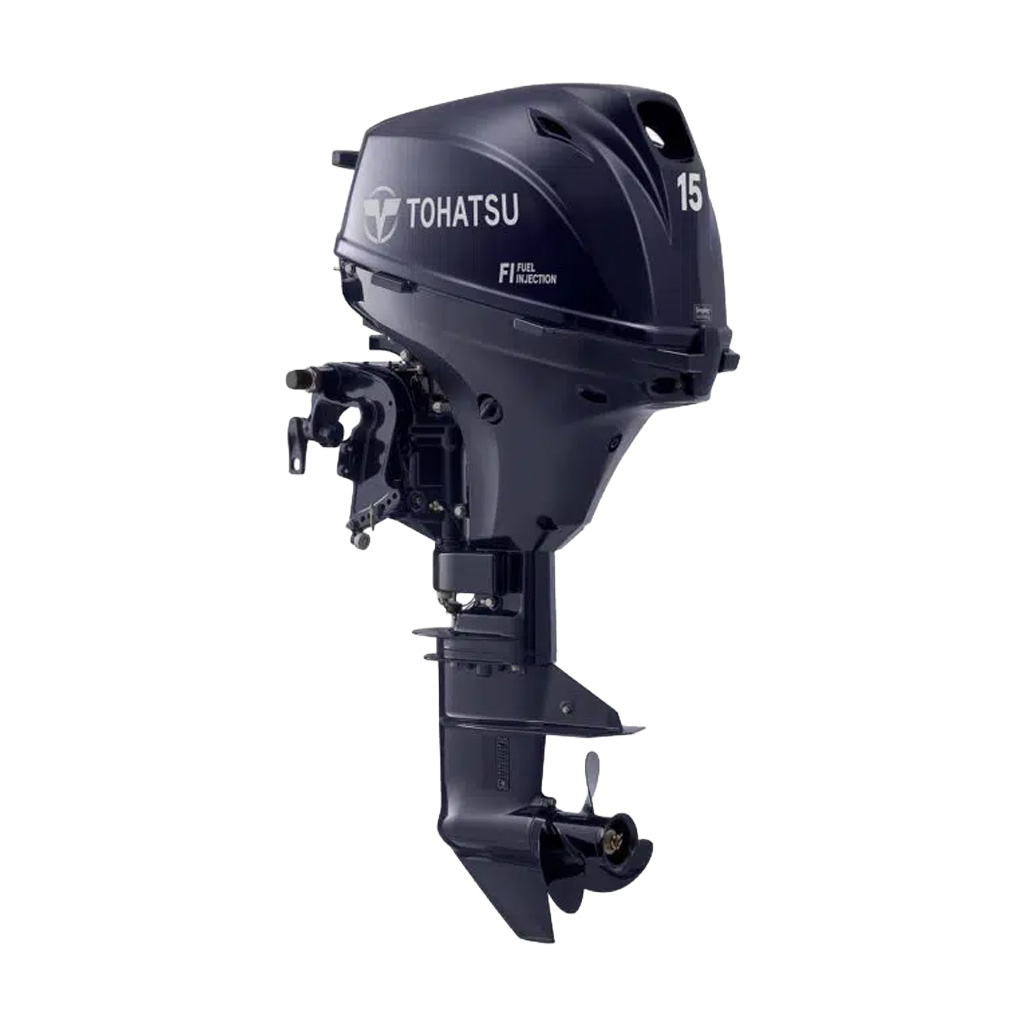

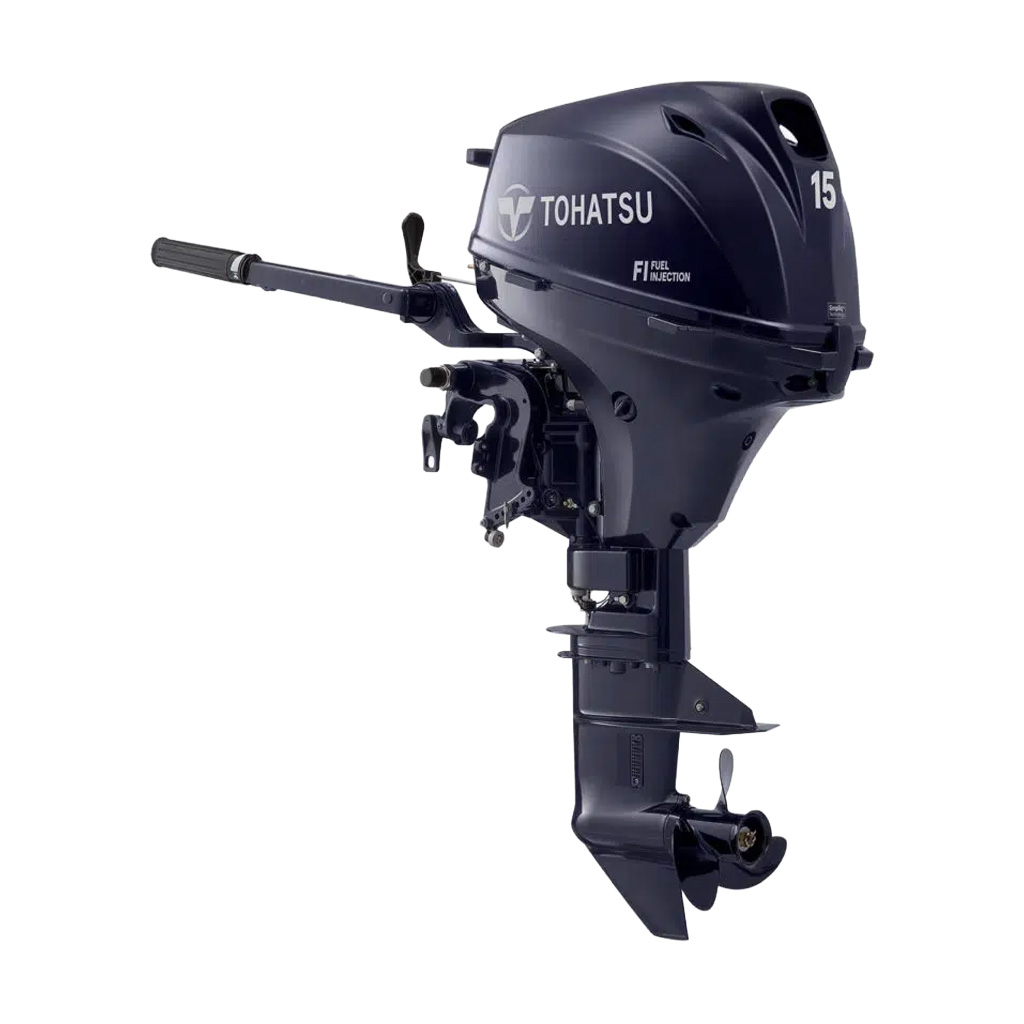

We do our best to provide you with the best engine we possibly can. That’s why we have taken our 15 hp model and made it better by introducing our MFS15hp Electronic Fuel Injection (EFI) which is the lightest 4-stroke battery-less EFI 15hp model in the industry! You can enjoy added features such as a higher power-to-weight ratio, which is the most important factor for small horsepower outboards. We also succeeded in drastically reducing sound level and vibration on our new 15hp EFI outboard. One major advantage of the EFI system is a quick startup with no choke needed and provides crisp acceleration throughout all RPM ranges as well as a significantly increased fuel efficiency at wide open throttle. Go ahead, put the engine to the test! You won’t regret it!

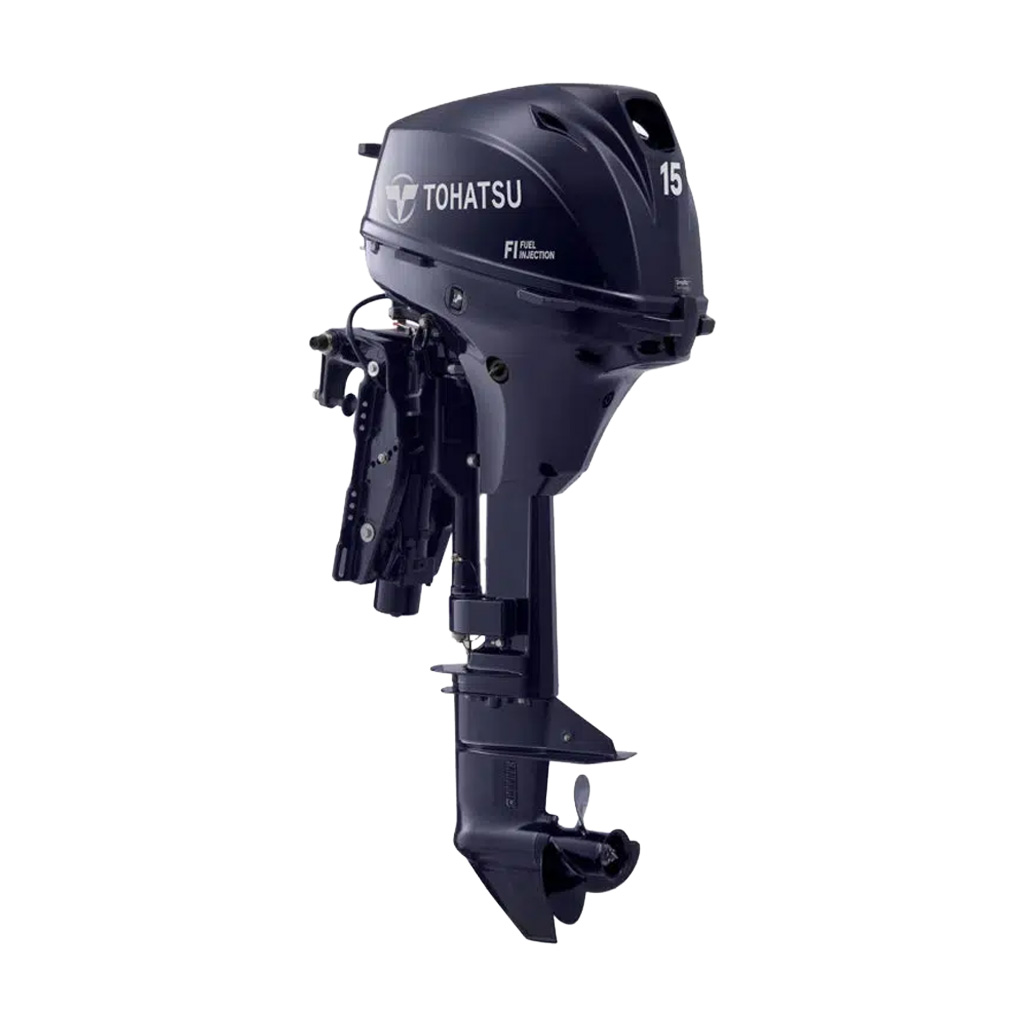

Power Tilt! We’ve added Power Tilt to our remote steering/throttle models to provide you even greater operating convenience. This engine offers the same features as our 15hp EFI model plus an added power tilt feature for greater operating convenience. As with our other engines, you can count on it to deliver the same reliability our reputation was built on.
* Certain models
** Remote control models

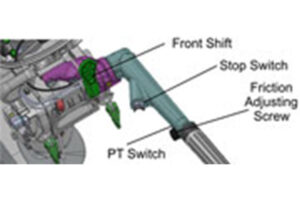

Stop Switch, Front Shift, Friction Adjusting Screw and Power Tilt Switch (PTS: on power tilt models only) are integrated into the tiller handle for convenience.

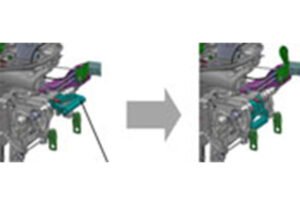

We’ve incorporated a carrying handle on the front that can easily be tucked away when not in use.

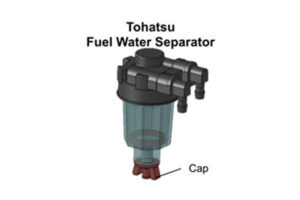

A high quality, user-friendly fuel water separator is standard equipment on all EFI 20 | 15 | 9.9 motors. This unique yet simple fuel water separator doesn’t require the use of a single tool to drain the water.

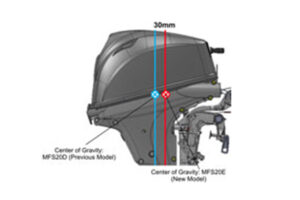

By moving heavy components (i.e. crankshaft, driveshaft) 30mm forward compared to the previous model, the tilting weight has decreased by 26% from the previous version, making it much easier for users to tilt manually.

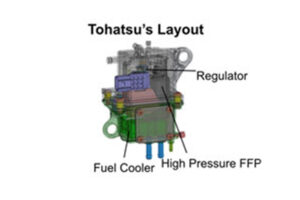

The Vapor Separator Tank (VST) has been designed to integrate the high pressure fuel feed pump, regulator, and fuel cooler into one component.
| Engine | 4 Stroke 2 Cylinder |
|---|---|
| Output | 15 hp (11.0 kw) |
| Displacement | 333 cc (20.32 cu.in.) |
| Bore x Stroke | 61 x 57 mm (2.40 x 2.24 in) |
| Max. RPM Range | 5,400 – 6,100 |
| Starting | Electric or Manual |
| Control Type | Remote Control or Tiller Handle |
| Gear Shift | Forward – Neutral – Reverse |
| Gear Ratio | 2.15:1 (13:28) |
| Propeller Selection Range | 6″ – 11.5″ |
| Transom Height | 15″, 20″ |
| Fuel | Unleaded Gasoline (87 Octane) |
| Oil Type | NMMA Certified FC-W® 4-stroke oil** SAE 10W-30/40 (SF, SG, SH, SJ) |
| Oil Capacity | 1L (1.06 qt.) |
| Fuel Tank | 12 L (3.1 US Gal.) Separate Fuel Tank |
| Weight* | 43 kg (94.8 lbs.) |
| Alternator Output | Optional: 12V, 145W, 12A (Standard on Electric Start Models) |
| Electronic Fuel Injection | Standard |
| Digital CD Ignition System | Standard |
| Start In Gear Protection | Standard |
| Thermostat Controlled Cooling System | Standard |
| Through-The-Prop Exhaust | Standard |
| Oil Pressure Warning | Standard |
| Shallow Water Drive | Standard |
| Power Tilt | Option |
| Model | Shaft Length | Cylinders | Electric Start | Tiller Handle | Remote Control | 12V Charging System | Power Tilt | Remote Fuel Tank | Propeller |
|---|---|---|---|---|---|---|---|---|---|
| MFS15ES | 15″ | 2 | S | S | S | ||||
| MFS15EL | 20″ | 2 | S | S | S | ||||
| MFS15EEFS | 15″ | 2 | S | S | S | S | S | ||
| MFS15EEFL | 20″ | 2 | S | S | S | S | S | ||
| MFS15EEPS | 15″ | 2 | S | S | S | S | S | ||
| MFS15EEPL | 20″ | 2 | S | S | S | S | S | ||
| MFS15EEPTS | 15″ | 2 | S | S | S | S | S | S | |
| MFS15EEPTL | 20″ | 2 | S | S | S | S | S | S |
Specifications subject to change without notice. Additional models and/or configurations may be available. Contact your local dealer for details.
* All information shown is to be used as general information only. Images shown are for illustration purposes only and may not represent the final product. All dimensions, power outputs and technical details are approximate and may vary from time to time depending on a range of factors. Any data shown is subject to change without notice. Some items or accessories may not be available in all areas/regions.
