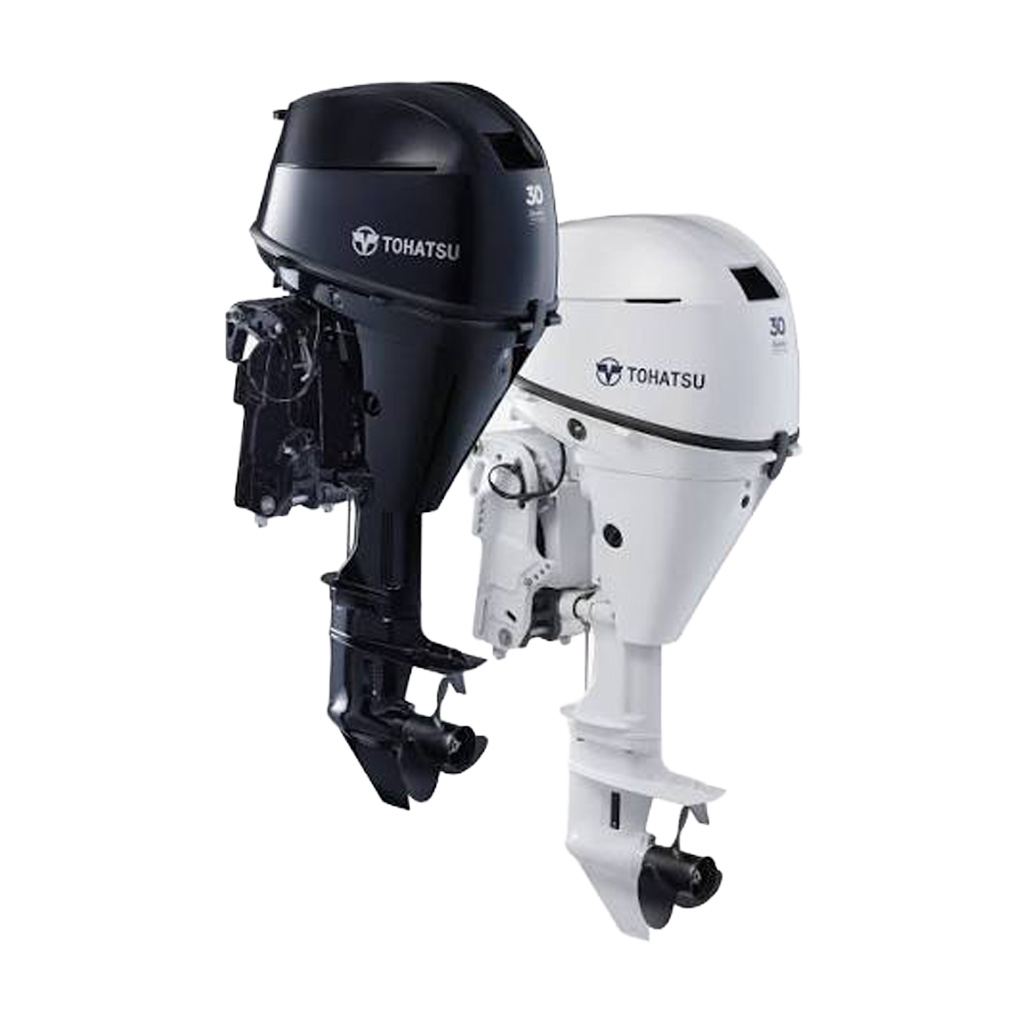

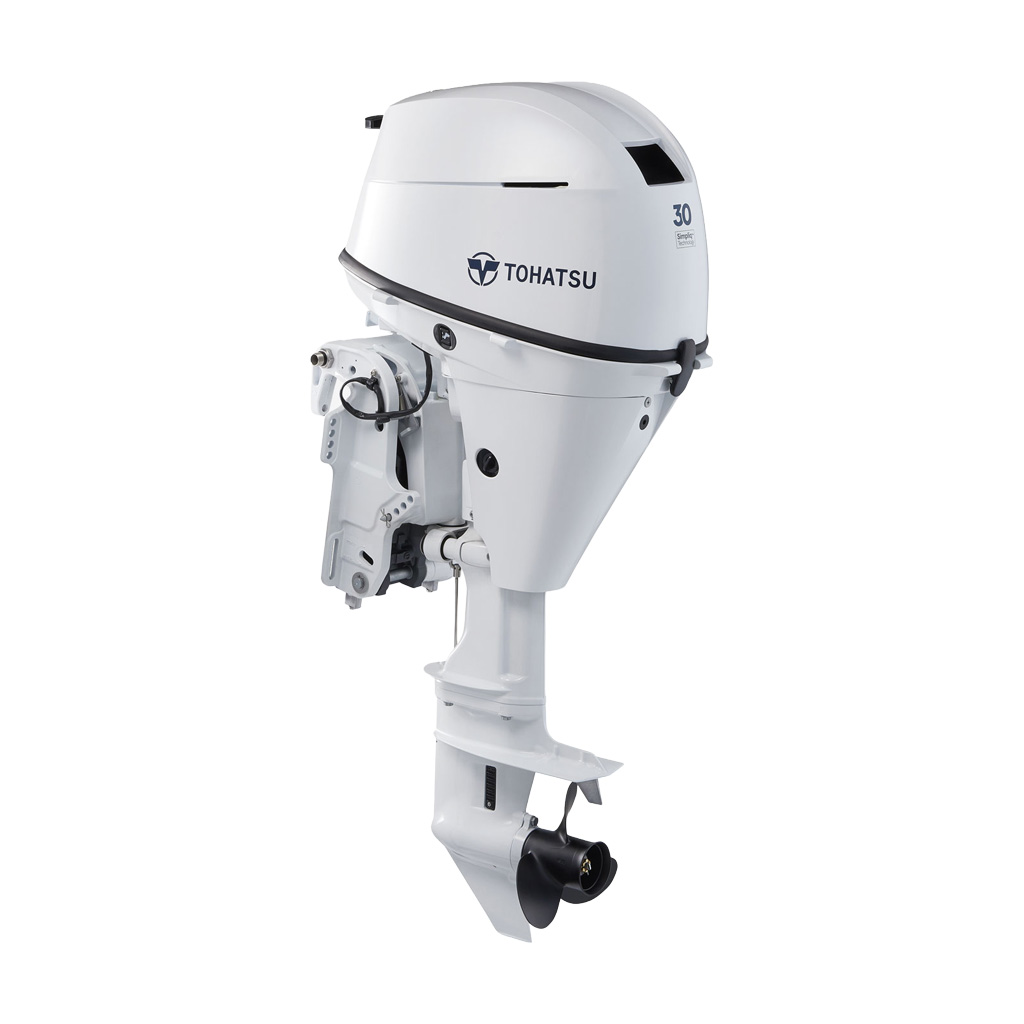

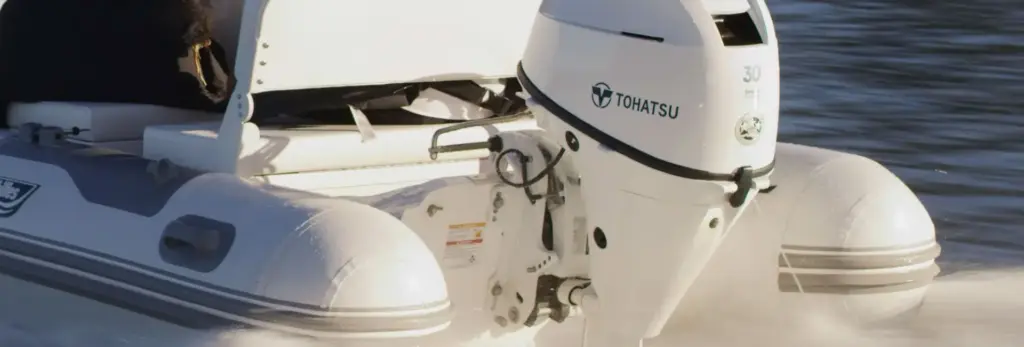

The MFS30D is designed for a wide variety of boat applications, such as Inflatable, RIB, Aluminum Fishing, FRP and/or Pontoon. Available in a wide variety of options, MFS30D will meet whatever configuration you need for your boat.
We have achieved the lightest weight in its class and improved reliability, without sacrificing performance. Tohatsu strives to deliver a smarter and more exciting boating experience.

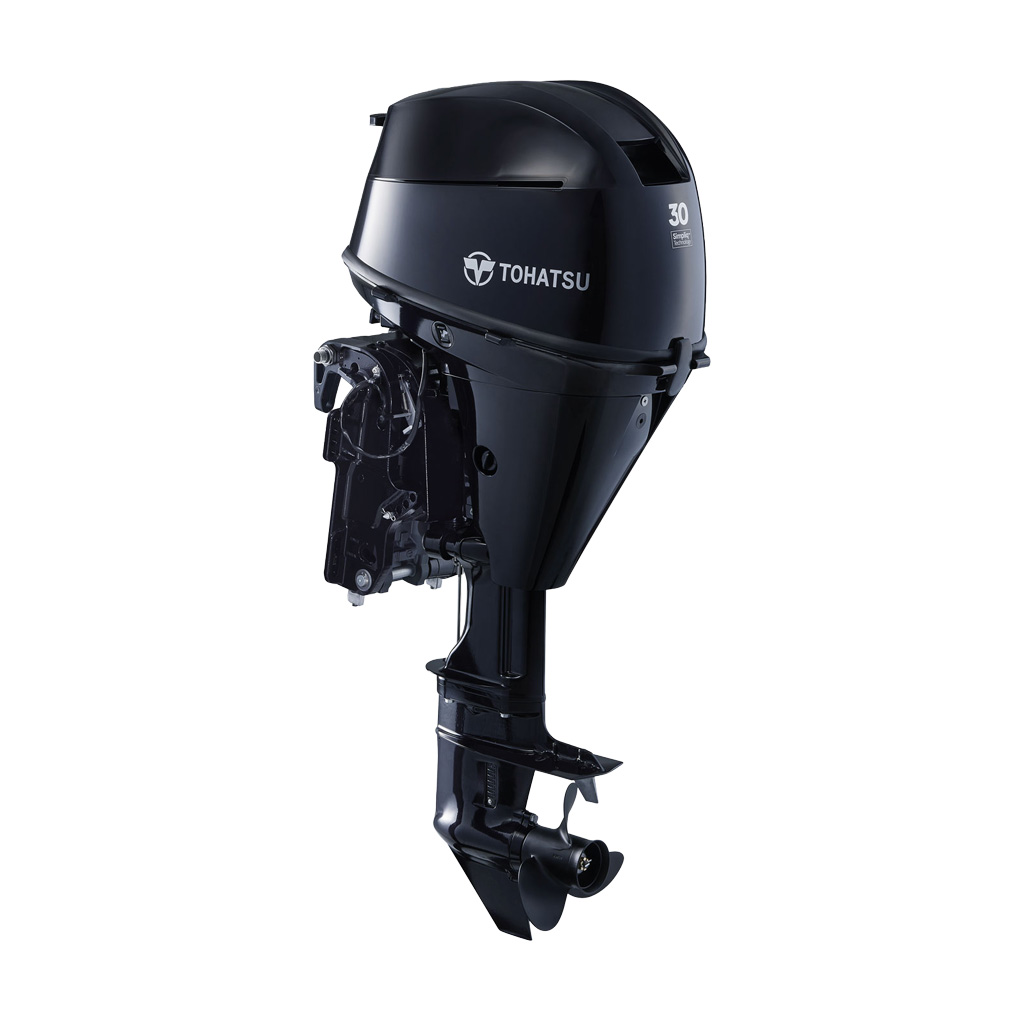

When you need compact power, the Tohatsu MFS30 30hp 4-stroke engine has exactly what you need.
* Certain models
** Remote control models
Unique to the MFS25/30D, we have redesigned the tiller handle to include a stop switch, a four-step trolling speed control system from 750 RPM to 1050 RPM, forward – neutral – reverse shifter, throttle friction adjustment, and electric start button on certain models. Tohatsu’s multi-function tiller handle is also available for multiple model options. Both standard and multi-function tiller handles have trolling speed control feature. Remote control models are also available.

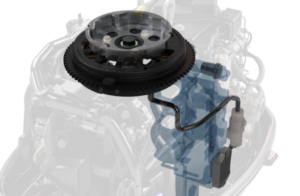

The electric start models include the best in class 17.5 amp high-output charging system. This is achieved by applying stronger magnets on the magneto and a water-cooled rectifier. These improvements produce the highest alternator output without increasing weight.

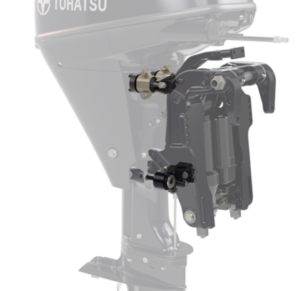

We have repositioned the engine mount locations and optimized the distance between the upper and lower engine mounts by bringing the upper mount and lower mount forward from the center of driveshaft. Our revamped design reduces vibration and increases maneuverability for a better boating experience.

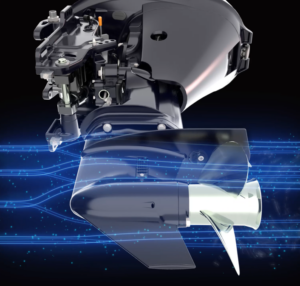

Tohatsu’s newly designed gear case has been given a more torpedo-like shape for optimal hydrodynamic flow, reducing water drag and improving performance – from planing to top end speed. A gear ratio of 2.17:1 optimizes low end torque and the ability to turn a wider variety of propellers for many boating applications.

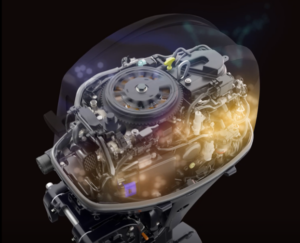

The newly designed flywheel creates airflow inside the cowling. This improves the internal air circulation and reduces the temperature of electrical components to maximize reliability.

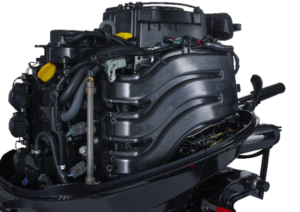

The intake manifold has been completely redesigned with resin to reduce weight by 48%.

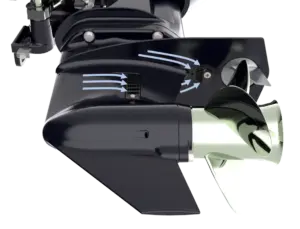

The MFS25/30D(W) gear case includes an additional auxiliary water intake port, providing consistent cooling water circulation. This allows the cooling water come up to cool the engine even if the primary water inlet were covered by marine debris.
| Engine | 4 Stroke 3 Cylinder |
|---|---|
| Output | 30 hp (22.1 kw) |
| Displacement | 500 cc (30.5 cu.in.) |
| Bore x Stroke | 61 x 57 mm (2.4 x 2.25 in) |
| Max. RPM Range | 5,500 – 6,500 |
| Starting | Electric or Manual |
| Control Type | Remote Control or Tiller Handle |
| Gear Shift | Forward – Neutral – Reverse |
| Gear Ratio | 2.17:1 (12:26) |
| Propeller Selection Range | 8″ – 14″ |
| Transom Height | 15″, 20″ |
| Fuel | Unleaded Gasoline (87 Octane) |
| Oil Type | NMMA Certified FC-W® 4-stroke oil** SAE 10W-30/40 (SF, SG, SH, SJ) |
| Oil Capacity | 1.7L (1.8 qt.) |
| Fuel Tank | 25 L (6.6 US Gal.) Separate Fuel Tank |
| Weight* | 58 kg (128 lbs.) |
| Alternator Output | 12V, 210W, 17.5A |
| Electronic Fuel Injection | Standard |
| Digital CD Ignition System | Standard |
| Start In Gear Protection | Standard |
| Thermostat Controlled Cooling System | Standard |
| Through-The-Prop Exhaust | Standard |
| Overheat Buzzer | Standard |
| Oil Pressure Warning | Standard |
| Power Trim and Tilt | Option |
| Variable Idle Speed | Standard |
| Shallow Water Drive | Standard |
| Model | Shaft Length | Cylinders | Electric Start | Tiller Handle | Remote Control | 12V Charging System | Power Trim &Tilt | Remote Fuel Tank | Propeller |
|---|---|---|---|---|---|---|---|---|---|
| MFS30DS | 15″ | 3 | S | S | S | ||||
| MFS30DL | 20″ | 3 | S | S | S | ||||
| MFS30DES | 15″ | 3 | S | See Note | See Note | S | S | S | |
| MFS30DEL | 20″ | 3 | S | See Note | See Note | S | S | S | |
| MFS30DETS | 15″ | 3 | S | See Note | See Note | S | S | S | S |
| MFS30DETL | 20″ | 3 | S | See Note | See Note | S | S | S | S |
| MFS30DWETL | 20″ | 3 | S | See Note | See Note | S | S | S | S |
Specifications subject to change without notice. Additional models and/or configurations may be available. Contact your local dealer for details.
* All information shown is to be used as general information only. Images shown are for illustration purposes only and may not represent the final product. All dimensions, power outputs and technical details are approximate and may vary from time to time depending on a range of factors. Any data shown is subject to change without notice. Some items or accessories may not be available in all areas/regions.
