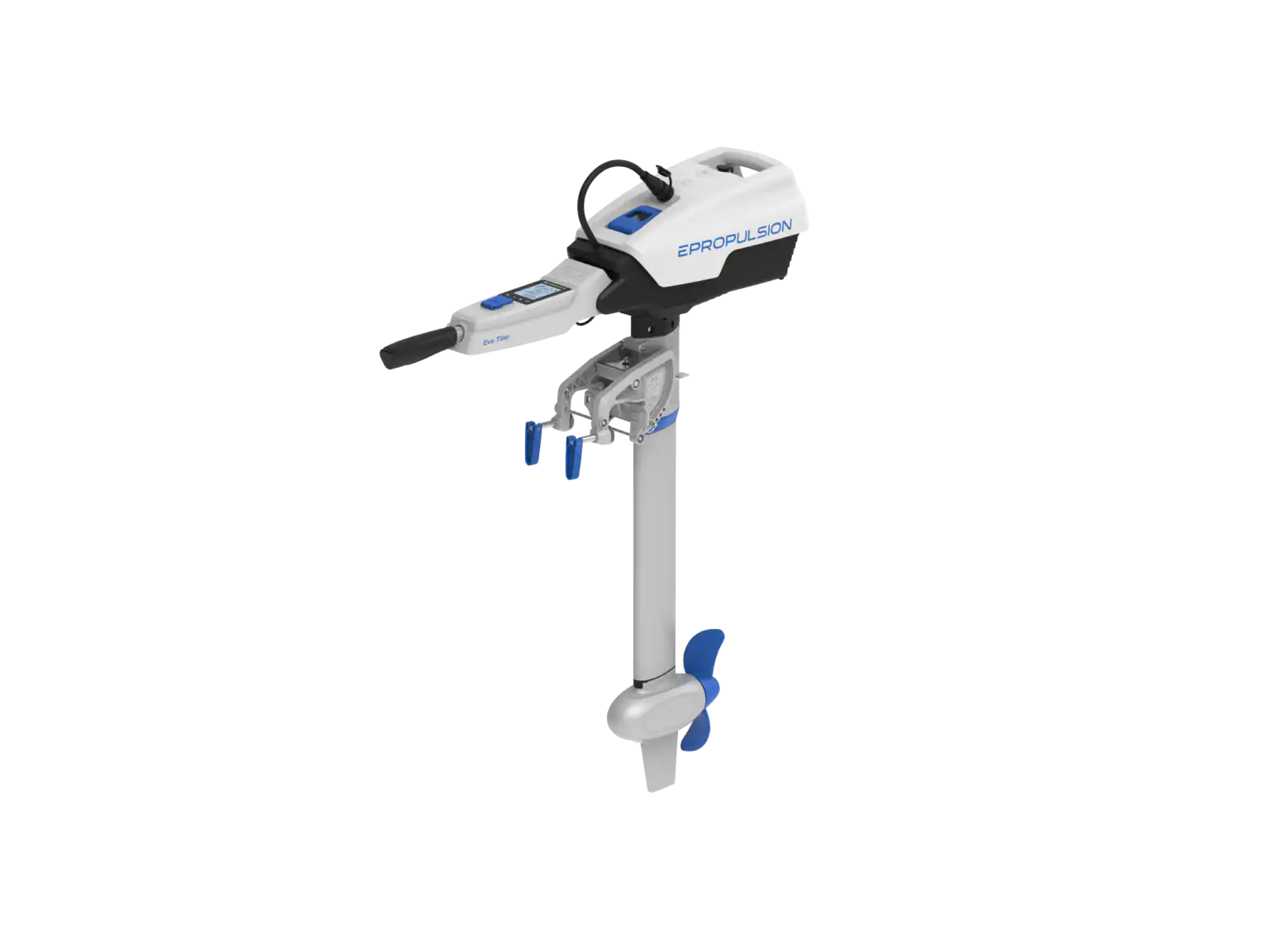

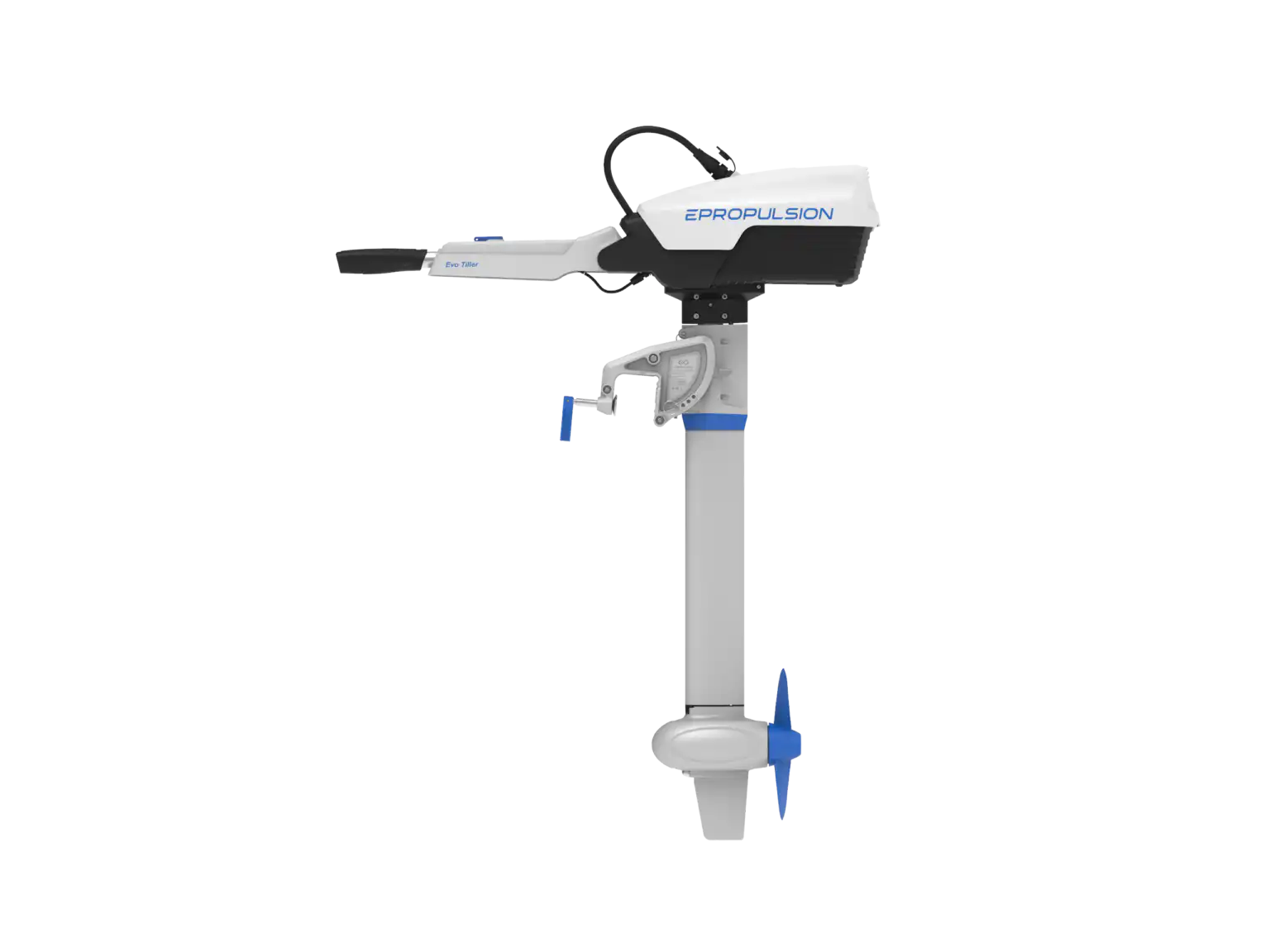

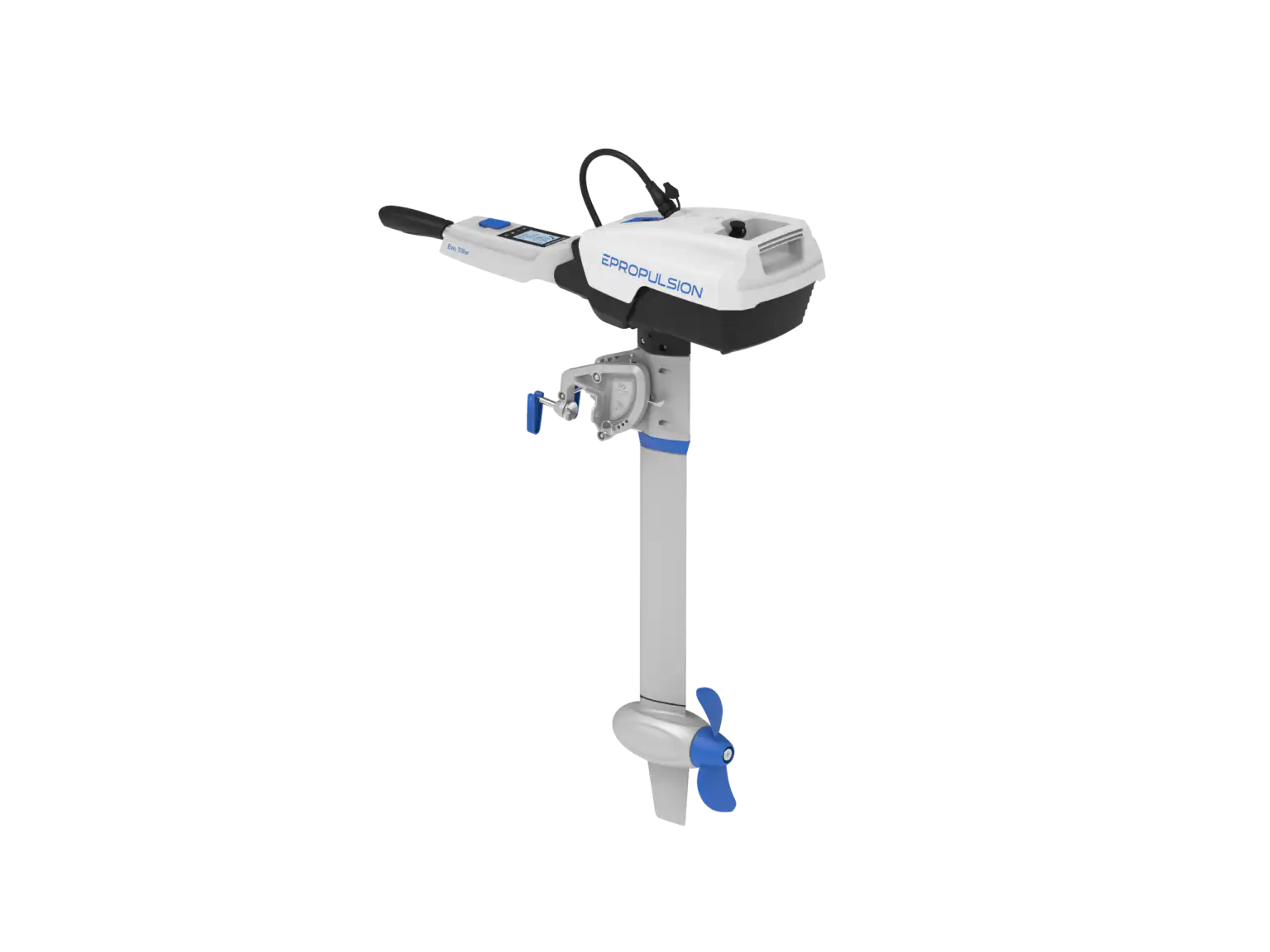

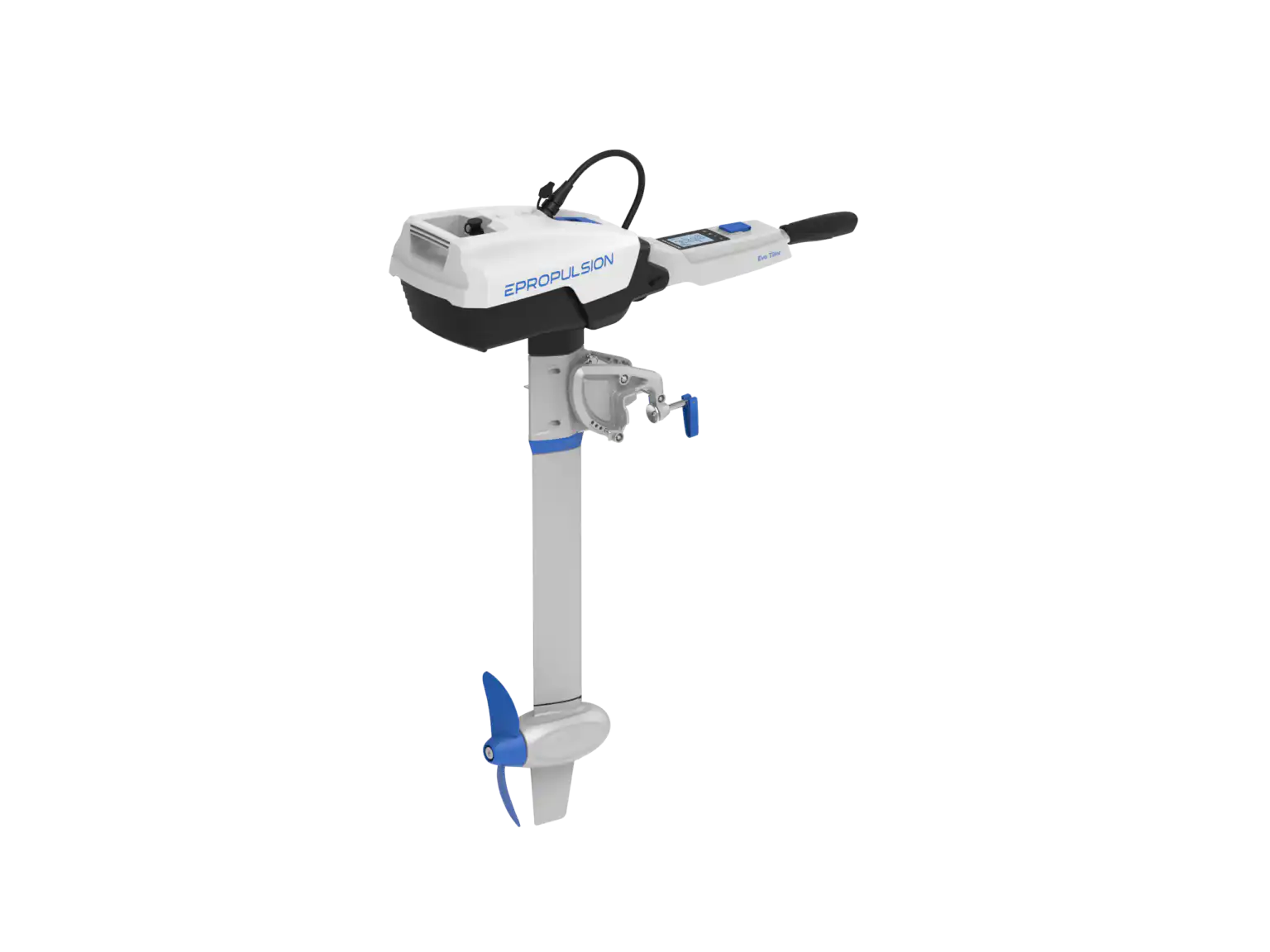

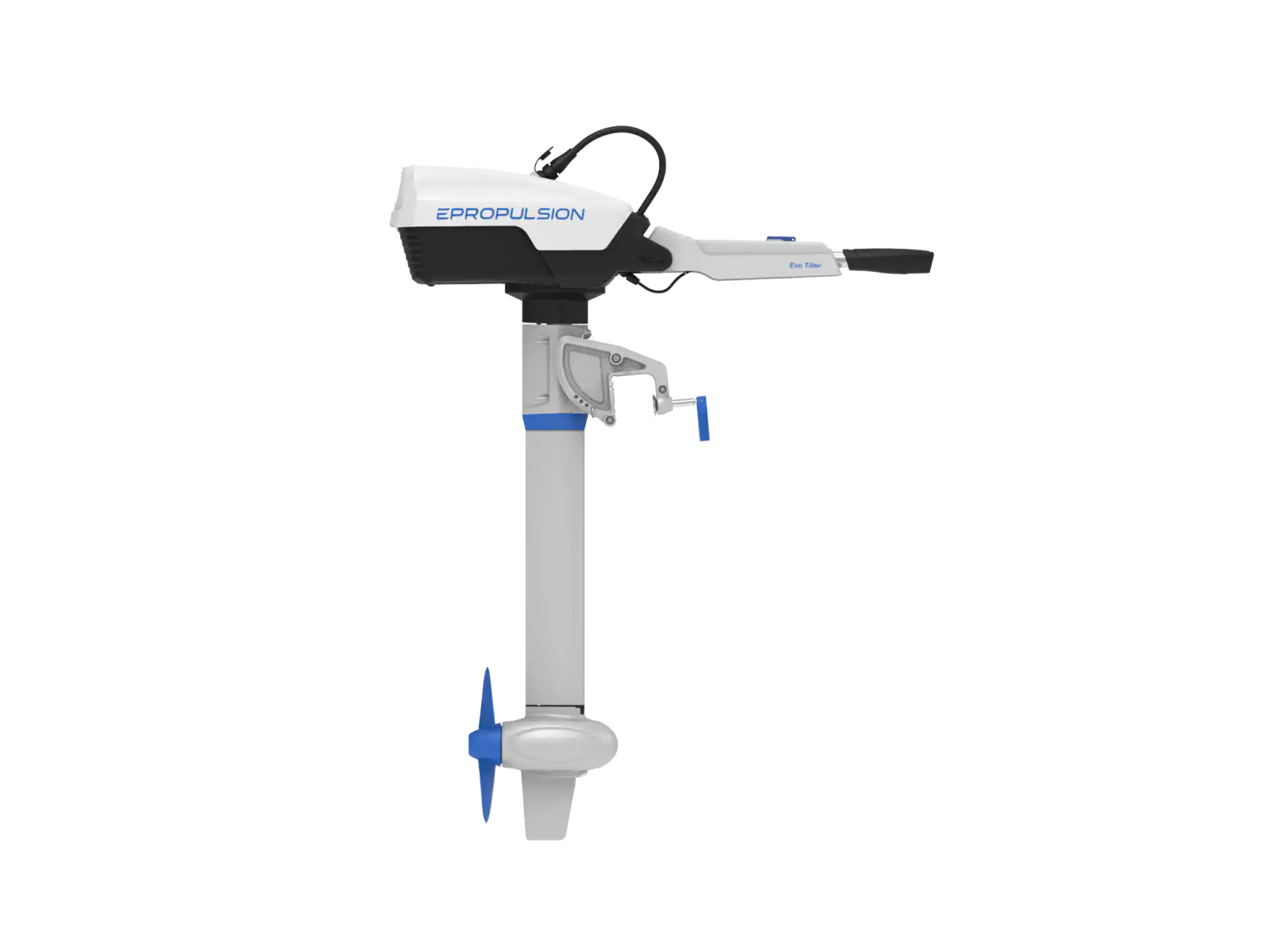

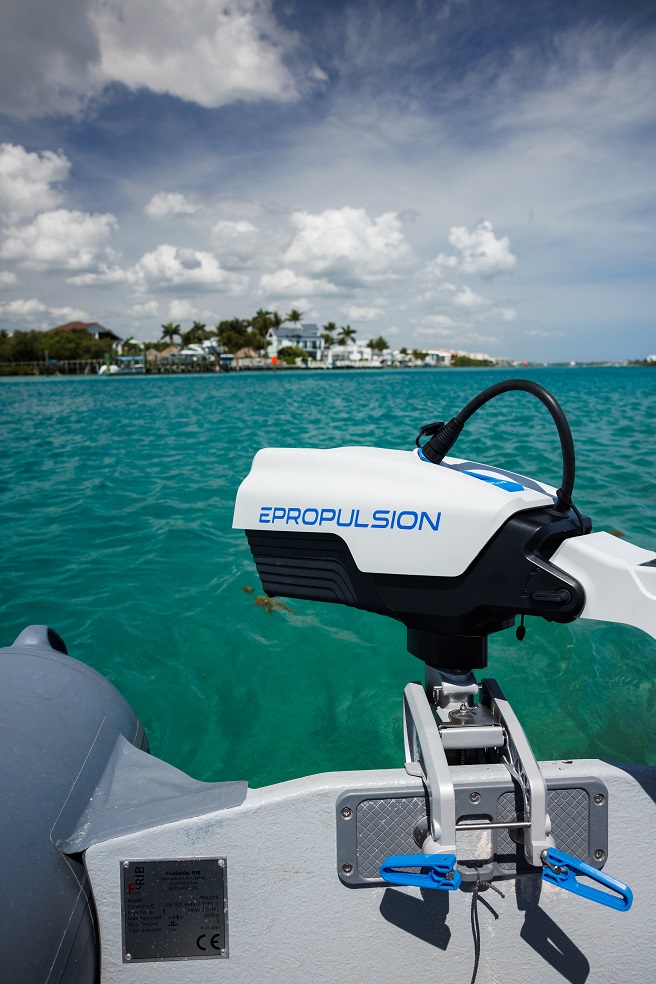

The Spirit 1.0 Evo is a portable 1kW (~3HP) electric outboard made for dinghies, fishing boats, and sailboats. The Evo upgrade includes ability for remote controller and steering, as well as hydro-generation where battery is charged while boat is operating under alternate power such as sailing. It features a 1,276Wh large integrated lithium battery for long range. The safety wristband keeps you safe in case of MOB.

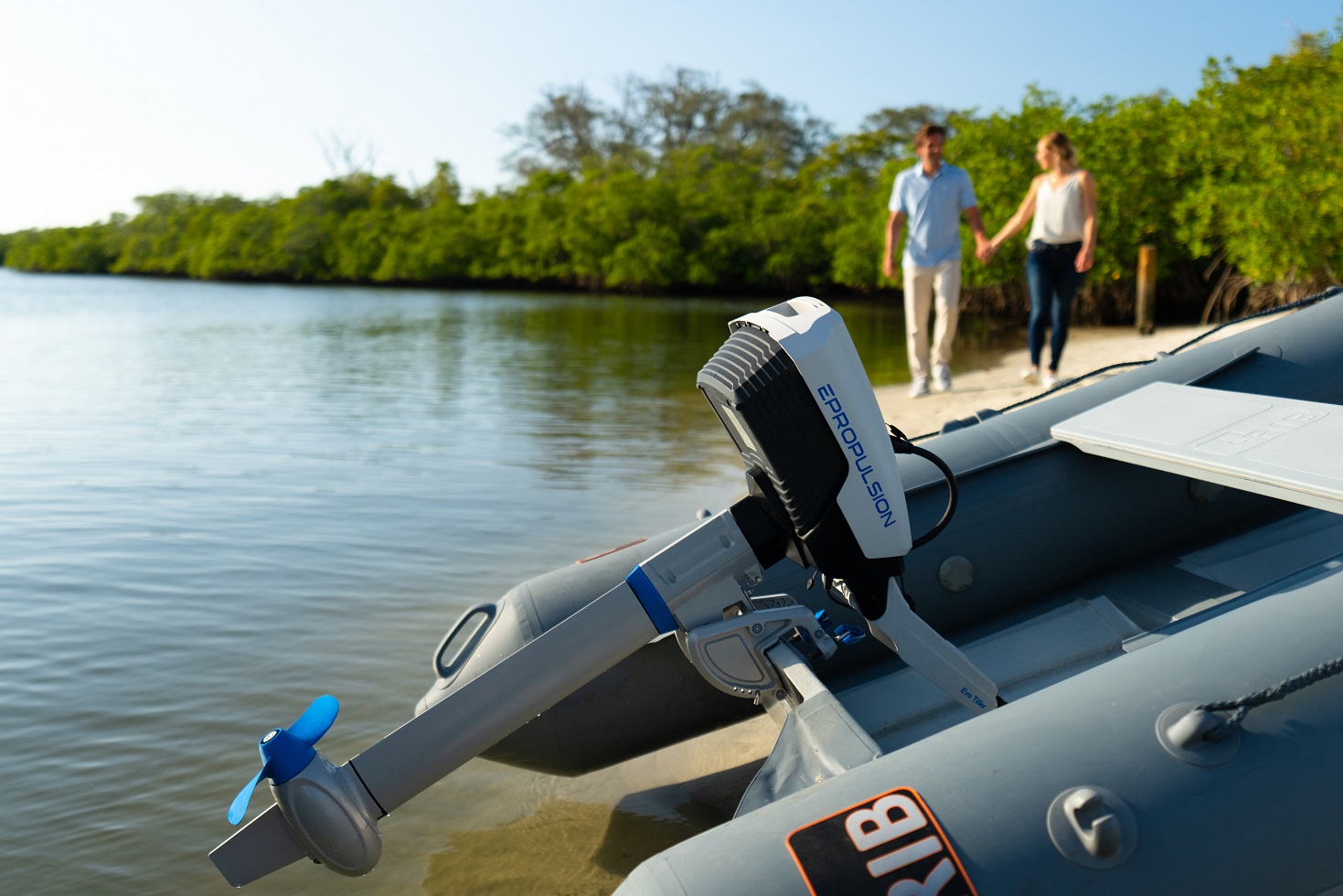

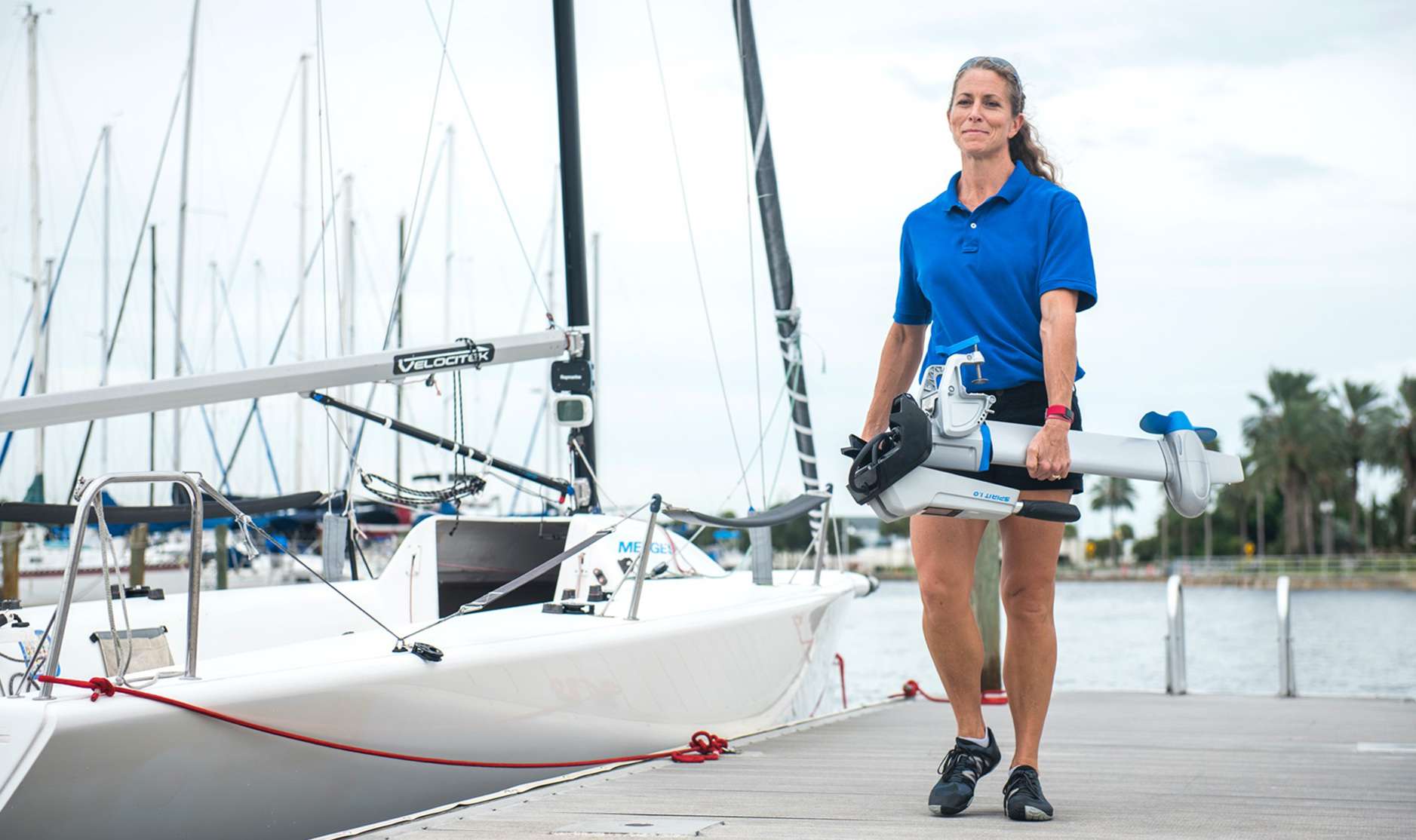

Spirit 1.0 Evo outboard with battery is portable & easy to transport. It would be a pleasure to have Spirit 1.0 Evo in your gear list when preparing a trip.
The ePropulsion carry bag has been designed specifically for the Spirit outboard, providing protection and storage.
The Spirit 1.0 Evo has been designed to pack up or setup quickly and easily, making it ideal for a number of uses.
The Spirit 1.0 Evo is the first-ever electric outboard that features hydrogeneration, where the battery is charged while the boat is operating under alternate power such as sailing. ePropulsion are the pioneers in the innovation of electric outboard motors and we dedicate ourselves to sustainable sailing.
The Spirit 1.0 Evo outboard can drive the propeller to charge the battery (only compatible with ePropulsion battery) through water flow when certain conditions are met (please refer to the Evo user manual for further information).
The hydrogeneration data shown above is based on real tests with anti-ventilation plate installed.

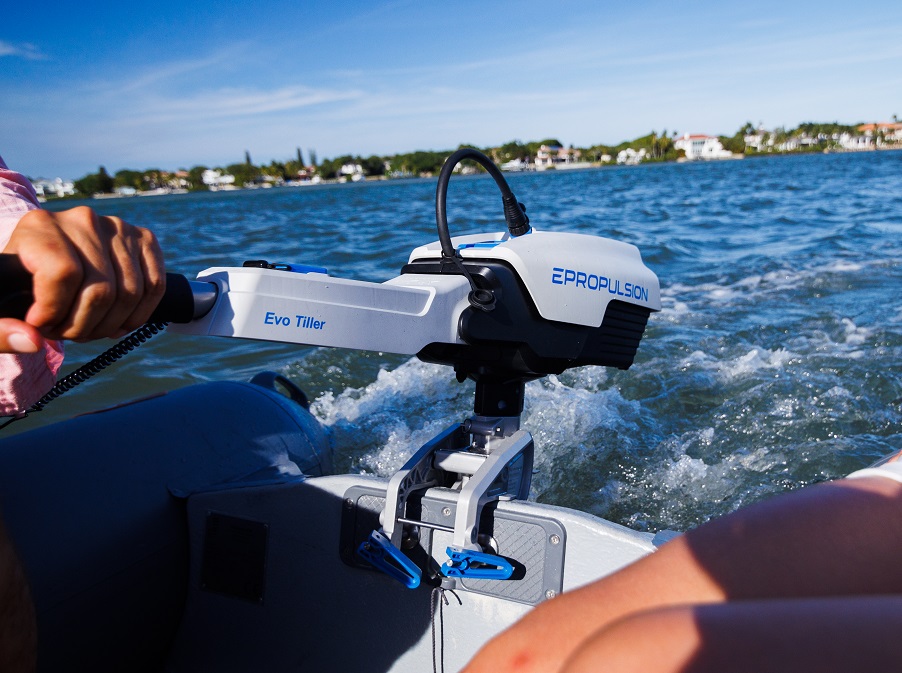

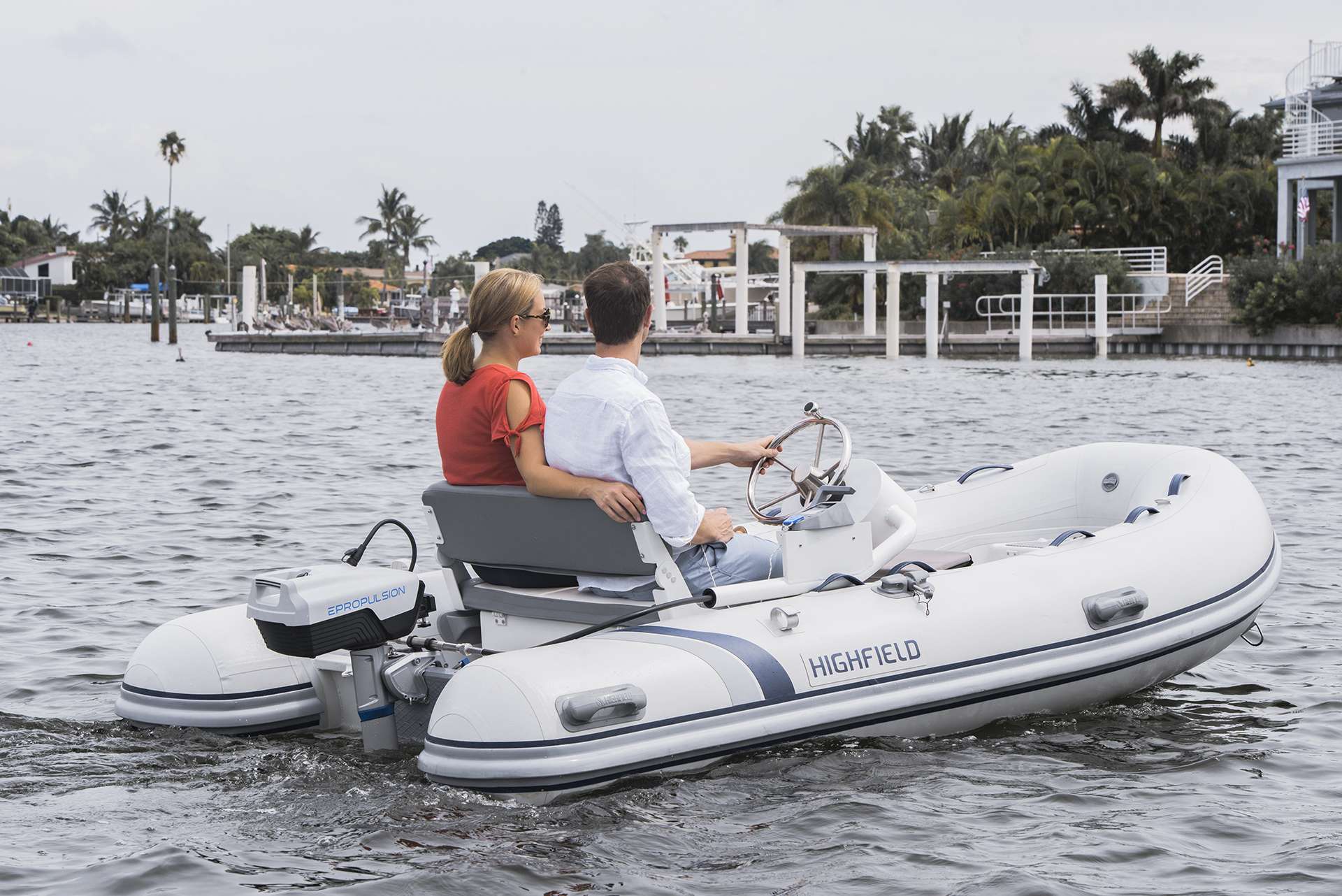

The Spirit 1.0 Evo is available in both tiller and remote control options, giving you greater flexibility than ever before. Our remote controls come in either Evo top mount control or Evo side mount control, with dual remote controls also available.
The integrated rechargeable lithium battery is lightweight, weighing only 8.7kg and made tough for a range of conditions.
High energy density in a lightweight & compact design
No more worrying if the battery drops in the water
Dual power ports allow solar charging, even when in use

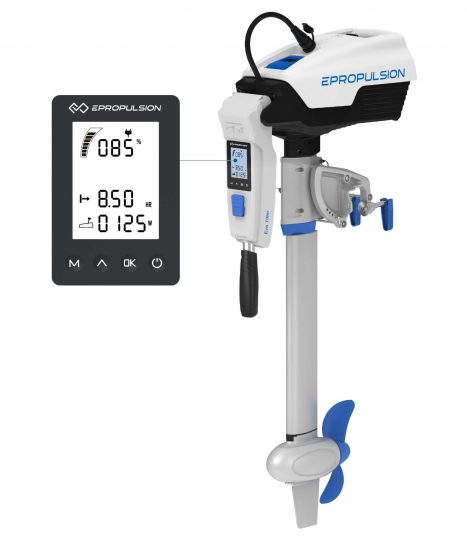

The Spirit 1.0 Evo electric outboard is easy to operate and keeps you informed of operational status.
You have access to real-time power, remaining runtime, battery level, operating voltage, etc.
Press one button and you’re ready to go. No more pull cord start.
Stop the motor in an emergency and keep you safe.
With a smaller full throttle power, it’s safer for kids and rental boats.
Turn the throttle easily either from the left-hand or right-hand side.
The throttle hand feel is comfortable, clear, smooth and enjoyable.
At the core of the Spirit 1.0 Evo electric outboard motor, it’s a 1kW BLDC motor, comparable with 3HP petrol outboard (propulsive power).
| Power (W) | Speed (mph / kph) | Runtime (hh:mm) | Range (mile / km) |
|---|---|---|---|
| 35 | 2.2 / 3.5 | 36:25 | 80 / 129 |
| 65 | 2.7 / 4.3 | 19:35 | 53 / 85.3 |
| 125 | 3.5 / 5.6 | 10:00 | 35 / 56 |
| 250 | 4.4 / 7.1 | 5:00 | 22 / 35.5 |
| 500 | 5.3 / 8.5 | 2:30 | 13.3 / 21.3 |
| 750 | 5.7 / 9.2 | 1:40 | 9.5 / 15.3 |
| 1000 | 6.2 / 10 | 1:15 | 7.8 / 12.5 |
* The performance data is based on a 12-foot aluminum boat with one person and one Spirit battery Plus in calm lake water.
The actual speed, range and running time may vary because of different boats, load, weather, etc.
| Power | 1 kW / 3HP |
| Input Voltage | 39V – 60V |
| Standard Battery | Spirit Battery Plus, 1,276Wh li-ion polymer |
| Motor Weight* | 11.3 kg (tiller) / 10.6 kg (remote control) |
| Battery Weight | 8.7 kg |
| Charging Time | Standard charger: 8.5 hrs / Fast charger: 3.5 hrs |
| External Battery | Yes, E-Series Battery recommended |
| Propeller | 11″ × 5.8″ 2-blade composite propeller |
| Trim / Tilt Angle | 0°, 7°, 14°, 21° / 85° |
| Shaft Length | Short, Long |
| Control | Evo Tiller / Evo Top Mount Control OR Evo Side Mount Control (Dual Remote Control also available) |
| Hydrogeneration | Yes |
* Weight shown based on short shaft model
* All information shown is to be used as general information only. Images shown are for illustration purposes only and may not represent the final product. All dimensions, power outputs and technical details are approximate and may vary from time to time depending on a range of factors. Any data shown is subject to change without notice. Some items or accessories may not be available in all areas/regions.
